H-031
电源组合直通柜(带19芯)

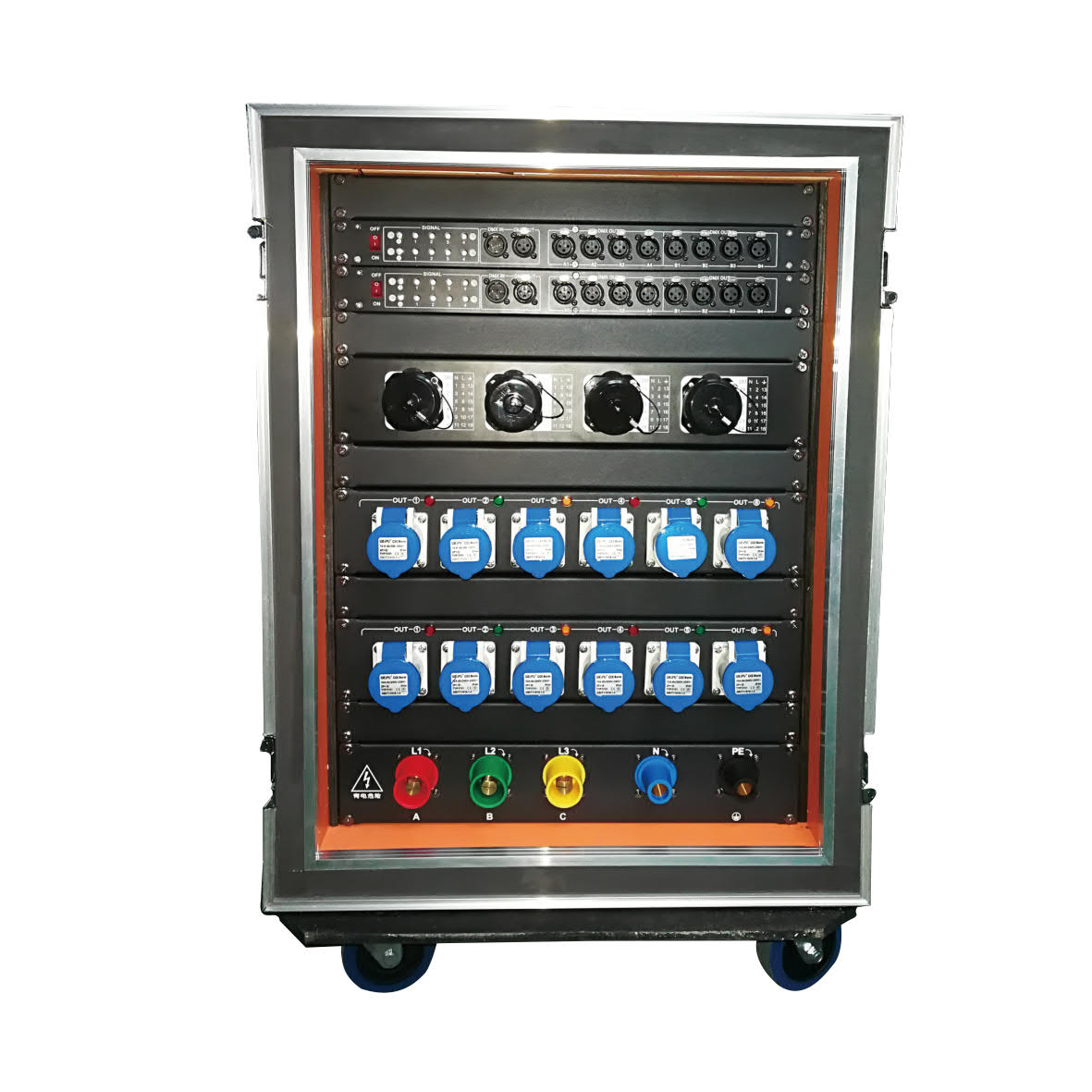

Power Combination Through Cabinet (with 19 Cores)

15U航空箱，有盖门。
内部德力西4平方国标线，分空开德力西25A,每路4KW，250A德力西大空开，
三相电流电压显示。12个16A防水工业插，4个19芯插座，两个8路信号放大器，1个3孔多功能常规插座。
总输入为400A工业防水插，最大可以用50平方5芯电缆线，总功率最大125KW,
可以满足LED大屏，灯光音响。输出每路带指示灯。
可DIY面板和后盖板
可私人定制

15U air box, covered door.
Internal Delixi 4 square national standard line, divided by 25 deli West 25A, each road 4KW, 250A Delixi large open,
Three-phase current voltage display. 24 16A industrial waterproof plugs, 1 3-hole multifunction conventional socket.
The total input is 400A industrial waterproof plug, the maximum can use 50 square 5 core cable, the total power of up to 125KW, with 6 * 6KW silicon box.
Can meet the LED screen, light and sound. Output each road with indicator light.
DIY panel and rear cover
Customizable
